Pilot4

The Pilot4 offers maximum versatility as an all-round boat with an impressive performance. Her remouvable cuddy is perfect if you enjoy a lot of different activities, fishing, water-skiing, diving, bathing or just pottering around.

At slow displacement speeds the Pilot4 tracks well and is very maneuverable, so whether you are trolling for fish or exploring rivers you can be assured a relaxing time. But apply the throttle and the Pilot4 eases onto the plane giving you the performance you would expect from a conventional sports boat.

When onboard you have the space and feeling of a much larger boat with plenty of storage and seating. The high internal freeboard is perfect for smaller children, with the cuddy providing a safe haven even on those colder days.

She has been designed with practicality and seaworthiness in mind, combining style and purposefulness, the Pilot4 is without exaggeration,
a classic in the making

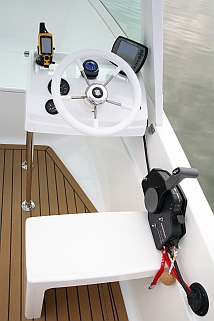

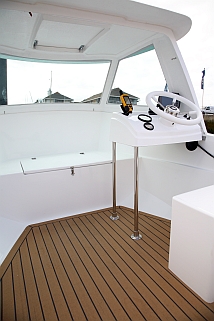

The layout has been kept simple and practical, with large lockers forward and aft providing ample storage and seating. The steering console and helm seat have been positioned amidships to starboard keeping the majority of the deck open and versatile. An optional port side seat is also available. The removable cuddy is mounted forward with a rooftop hatch giving safe access to the foredeck when mooring and anchoring. This arrangement gives exceptional levels of visibility through the cuddy generally not found on many other similar boats.

The hull is of a medium ‘V’ type with a deep forefoot creating fine sections forward that slice through choppy seas. Spray and chine rails improve performance and deflect spray down and away from the boat keeping her dry even if conditions deteriorate. The hull has a deadrise of 15 degs. aft and plenty of beam to support the larger and heavier 4-stroke outboards.

The Pilot4 is manufactured from GRP, with the hull reinforced by an internal girder system linking the hull and deck mouldings, producing a very strong and rigid structure, all GRP materials being Lloyds approved or equivalent. The keel is double laid and the transom is reinforced with marine plywood and supported by the girder system to take the engine loadings. The full deck moulding incorporates a non-slip finish with additional structure in way of each deck fitting.

Pilot4 Technical Details

Length (hull)

4.00 m

Beam

1.82 m

Boat Weight (excl. engine)

290 kg

CE Category

C

Passengers

5

Outboard Motor, max

50 hp long shaft
Designer: Charles Broughton
Performance (full fuel, single crew & kit) 5-10 hp for speeds up to 6+ knots


20 hp for speeds up to 16 knots
(with Smart Tabs)

30-50 hp for speeds up to 30+ knots


Pilot4 Standard Equipment:

  • Bow eye fitting
  • Anchor roller
  • Foredeck cleat & fairleads
  • Cuddy - removable
  • Access hatch to foredeck
  • Lightly tinted cuddy windows
  • Port & starboard hardwood capping rail inserts
  • Port & starboard aft mooring cleats
  • Integral aft seating with lockable storage
  • Clear non-slip internal moulded deck pattern
  • Integral forward seating with lockable storage
  • Starboard side steering and engine control console
  • Steering unit & linkage
  • Port & Starboard Helm seats
  • Stern boarding ladder

Pilot4 Extras:

  • Teak effect main deck
  • Seat cushions, blue with white piping
  • Mooring canopy
  • Pedestal Seating

Pilot4 Packages:

  • Bunked & multi-roller trailer options
  • Outboard engines to suit requirements
  • Dealer fitted electrical and navigational equipment


Pilot4 Brochure Download (click here)

Boat Tests (click here)


Recommended Retail Pricing:

The January 2017 Pilot4 standard boat only price is £6,598 but please contact your local dealer for the best boat, engine & trailer package prices. Price includes vat and is ex. works, Plymouth, (please allow additional cost for delivery).  Every effort is made to ensure that pricing is correct, though we reserve the right to change pricing due to variations in supply.
