Pilot6 Fisherman

The Pilot6 Fisherman is a simpler, rugged version of our Pilot6 Classic making her suitable for a multitude of roles. Her increased stability and flat open deck space allow you the customer to specify a layout that suits your requirements. Options include a side console which keeps the deck clear and open, a centre console that allows clear access all around for angling or rope handling and of course a cuddy for those that prefer a little protection from the elements.

The Pilot6 Fisherman is based on our renowned Pilot6 Classic, using the hull, girder and deck edge mouldings, but incorporating a hard wearing marine plywood deck, fully encapsulated with GRP. We have also lowered the deck by over 4" to increase the internal freeboard and stability characteristics.

The hull and deck edge mouldings are finished in a hard wearing white gel-coat with the internal sides finished with a resin topcoat. Working deck areas include a non-slip finish to the resin topcoat.

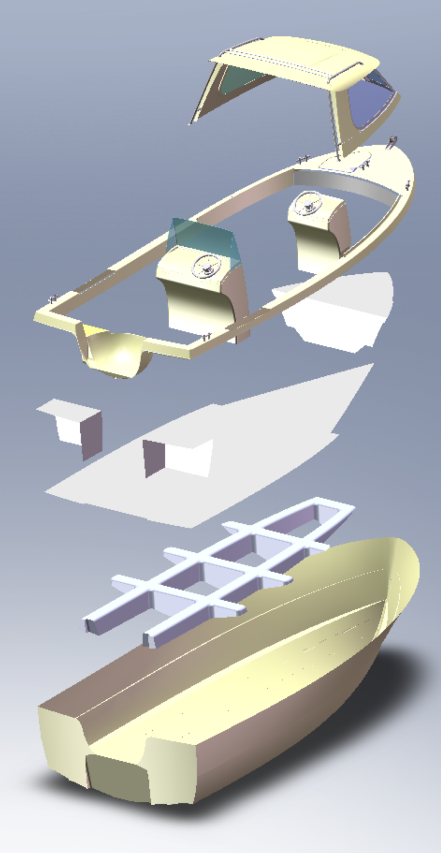

The hull structure has been designed for speeds over 30 knots and includes double laminates along the keel, chine and transom edges. The hull and deck are reinforced with a moulded grid girder system that includes two full length top hat girders and three full transverse floors. The girder system is laminated into the hull with the deck bonded on top, providing great strength and rigidity to the hull and deck structure.

Up forward there is a deck buoyancy compartment providing raised seating and standing access to the foredeck, which includes a hatch to the anchor locker. The fore deck includes one larger anchor cleat plus port & starboard mooring cleats as well as a cast alloy anchor roller.

Moving aft there is a raised lip to prevent water running into the boat as well as providing a landing for mounting the Cuddy. To facilitate the fitting of additional cleats, bollards, rod holders, hand rails, etc., plywood is laminated into the gunnel top from the aft end of the Cuddy lip, running right through to the outboard well.

Aft compartments have been added under the moulded quarter seats providing additional deck buoyancy, with space between and under the outboard well for two 25ltr portable fuel tanks. A bilge sump and transom drain can also be added in this location. Mooring cleats are fitted to port and starboard

Layout options include a centre or side console with steering as well as a Cuddy, or if you prefer we can supply the decked boat ready for your own fitout.

Pilot6 Fisherman Technical Details
Length (hull)	5.20 m
Beam	2.20 m
Boat Weight (excl. engine)	500-590 kg
CE Category	C
Passengers	5 (75Kg each)
Outboard Motor, max.	90 hp longshaft
Designer:	Charles Broughton
Performance (full fuel, single crew & kit)	100hp - 32-34 knots
	80hp - 28-32 knots
	60hp - 25-30 knots
	40-50hp - 21-24 knots
	30-40hp -16-21 knots

Pilot6 Fisherman Standard Equipment:

• Boarding ladder
• 4 x stainless steel mooring cleats
• Cast alloy anchor roller & S/S bollard
• Bow eye
• Foredeck self draining anchor & fender locker
• Non-slip resin finish to internal decks
• Port and starboard hardwood capping rail inserts


Pilot6 Fisherman Options:

• Side Console with steering wheel, helm and cable
• Centre Console with screen, grabrail, steering wheel, helm and cable
• Standard Pilot6 cuddy with inward opening forward hatch and S/S grab rails top and aft

Pilot6 Fisherman Packages:

• Multi-roller braked trailer
• Outboard engines to suit requirements


Give us a Call or Email us for a full price list

The Pilot6 Classic (click here)

The Pilot6 Open (click here)

Pilot6 Boat Tests (click here)

Small Vessel Commercial Use:

The Pilot6 Fisherman is designed, built and self certified to the requirements of the Recreational Craft Directive and satisfies all relevant ISO standards as required by the Maritime and Coastguard Agencies Code of Practice for Small Vessels in Commercial Use, see marine guidance notes MGN 280(M). Any requirement for survey, inspection and approval is the customers responsibility.

Based on calculations with all deck equipment located in deck lockers and fixed equipment located as low as practical, boats fitted with the centre console should exceed minimum stability requirements with one skipper and three crew, with side console boats reduced to one skipper and two crew - subject to final build mass and fitout. Mounting heavy items up high will reduce stability and allowable crew numbers.

Recommended Retail Pricing:

Ccontact us for the best boat, console, cuddy, engine & trailer prices. Boats are built to order with a 50% depsoit on all orders. Every effort is made to ensure that pricing is correct, though we reserve the right to change pricing due to variations in supply.
